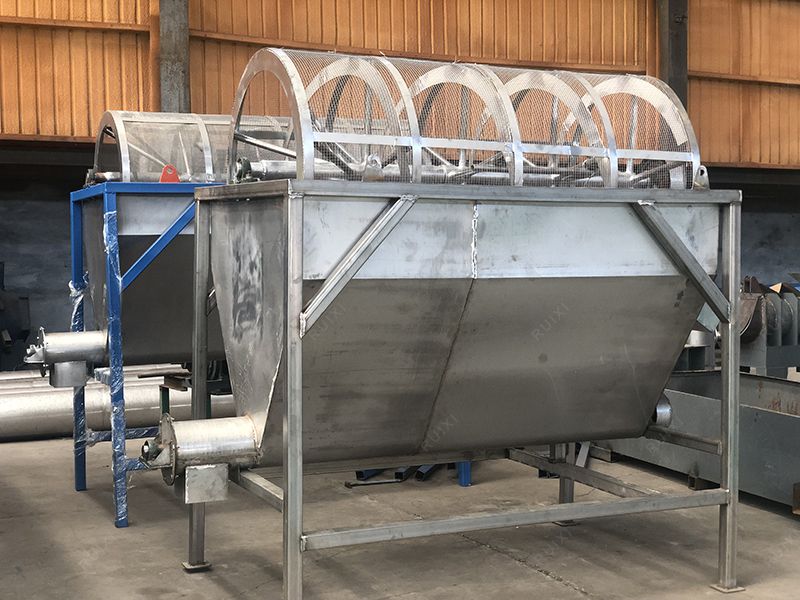

Description of fish meal cooling and screening machine:
Because the fish meal temperature from the dryer is relatively high, and there are large fish meal and small fish meal, too large fish meal need to be crushed to pack, the fish meal cooler screener is for cooling the temperature and separate the different size fish meal.
Performance characteristics:
1. Adopt two-stage structure, the front section cooling, the rear section screening.
2. Full cooling, uniform, good effect, large output, low energy consumption, stable operation, long service life.
3. Cooling mode: Air cooling
Working principle:
The fish meal enters the rotary cooler, under the action of the induced draft fan, the material is fully in contact with the cooling medium air, and the dry material is cooled by countercurrent method, and the fan end is connected to the dust collector to prevent dust from flying.
Two types fish meal cooling screening machine:
- small type which is suitable for small scale fish meal production line, low investment and small occupation of land.
2. Drum type which is sutiable for large scale fish meal production line, the cooling performance is good.
Flow chart of fish meal production line:
Fish grinder--fish meal cooking machine--fish meal press--fish meal drying machine--fish meal cooling & screening machine--fish meal crusher--fish meal packaging machine. additional, beside the main equipments. it also can be equipped with auxiliary equipment, such as Odor waste gas treatment equipments and fish oil treatment equipments. the proposal can be designed flexible according to the customer's requirements.
