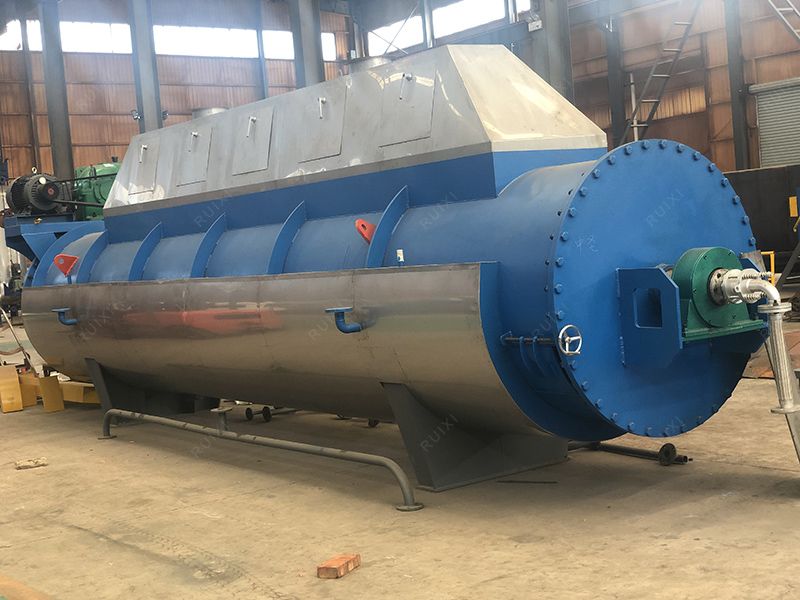

2t/h Steam heating fish meal dryer shrimp powder drying machine

Performance and characteristics of fish meal dryer

1. Use the outer jacket and spindle coil or steam box to pass steam, increase the heating area, high drying efficiency.

2. Exhaust hood and pipe are made of stainless steel to improve corrosion resistance and prolong service life.

3. Using the automatic water delivery system, the steam condensate is recycled to the boiler to reduce energy consumption and save water.

Scope of application

This fish meal dryer machine is suitable for drying high wet materials such as feather meal, fish meal, blood meal, meat and bone meal, kitchen waste, etc. to dry the moisture is less than 10% then pack.

Working principle

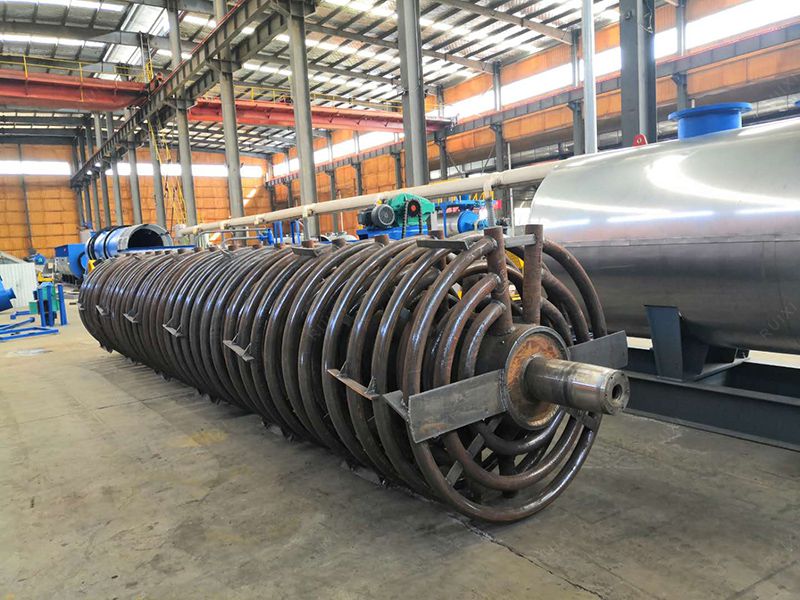

The fish meal drying machine transmits heat to the material through pipelines, part of the steam enters the annular space between the shell and the inner wall of the cylinder, heats the material through the inner wall, and the condensate is discharged from the bottom trap port; Another part of the steam enters the spindle and coil, heating the spindle and coil, and the condensate is discharged from the drain rotary joint. With the rotation of the shaft, the material is fully stirred and mixed under the joint action of the wheel blade and the coil, so that the material has maximum contact with the surface of the rotating shaft and the coil. The secondary steam is discharged from the top steam chamber of the shell through the exhaust pipe, and the weak vacuum degree is kept in the pipe, so that the waste steam will not leak out, and also avoid absorbing too much cold air. The dipper plate installed on the spindle is located between the heating coil, which can push the material to move forward, and has a self-cleaning effect, and can remove the covering layer on the shaft and cylinder wall to maintain good heat transfer ability.

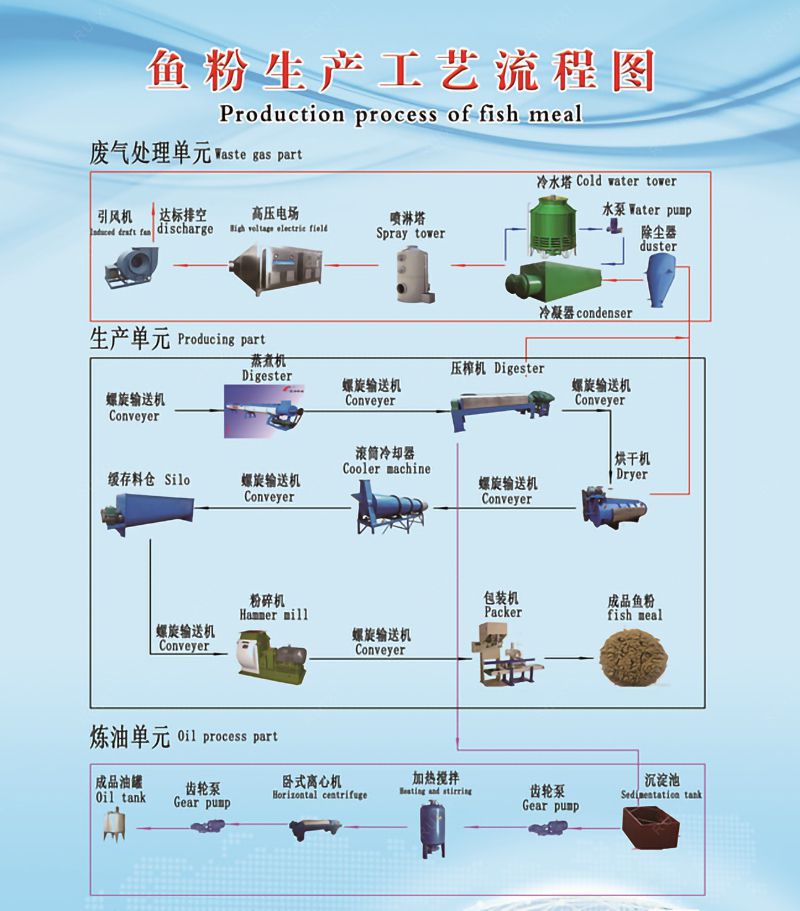

Flow chart of fish meal production line:

Fish grinder--fish meal cooking machine--fish meal press--fish meal drying machine--fish meal cooling & screening machine--fish meal crusher--fish meal packaging machine. additional, beside the main equipments. it also can be equipped with auxiliary equipment, such as Odor waste gas treatment equipments and fish oil treatment equipments. the proposal can be designed flexible according to the customer's requirements.
